Thermocouples & RTD Sensors

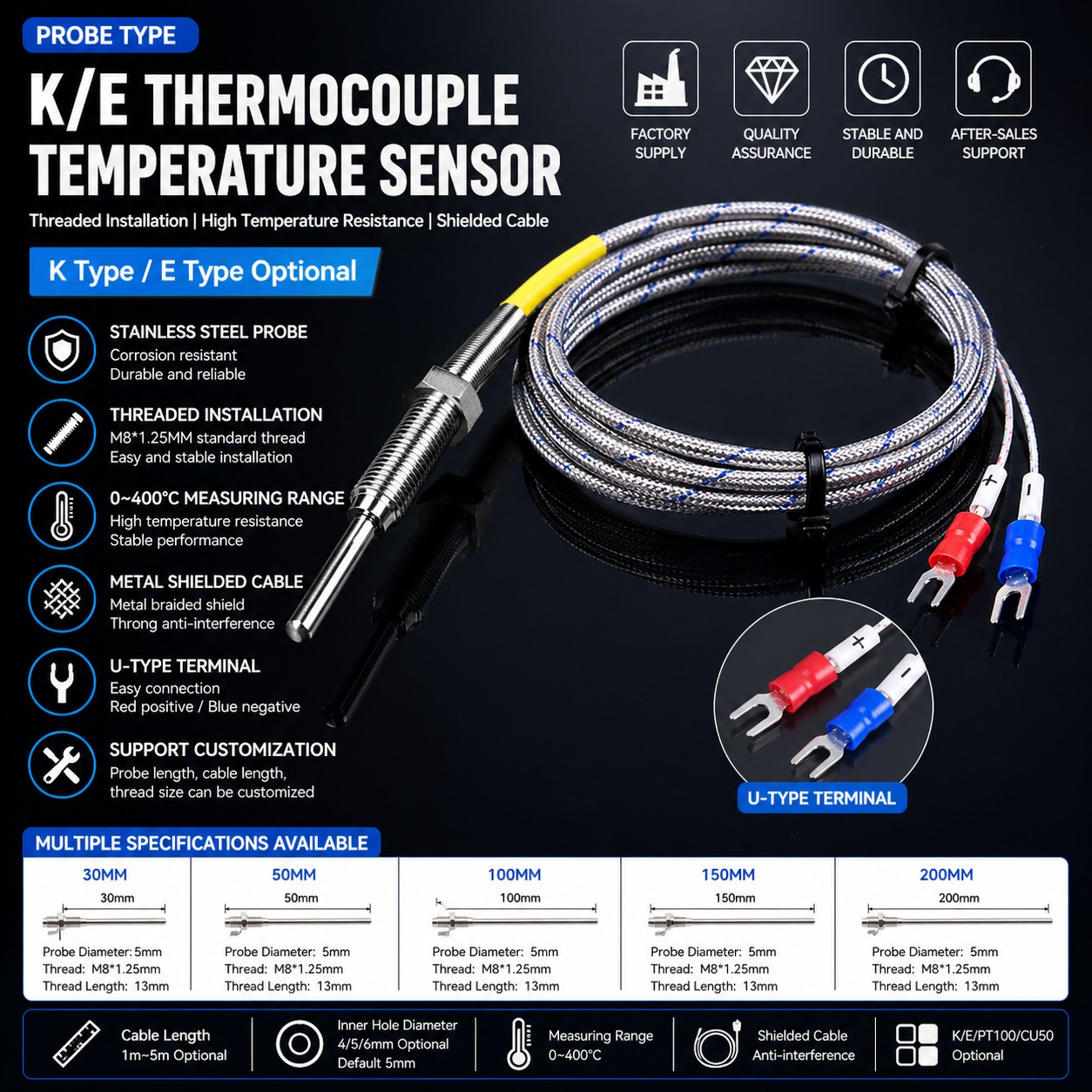

Probe Type K/E Thermocouple Threaded Temperature Sensor with Metal Shielded Cable
Probe type K/E thermocouple temperature sensor with stainless steel probe, M8 threaded installation, metal braided shielded cable, U-type terminal, and customizable cable length. Suitable for temperature controllers, heating equipment, plastic machinery, chemical equipment, industrial equipment, and automation systems.
- The stainless steel probe offers good durability, stable temperature sensing, and reliable performance in industrial environments.
- K type and E type thermocouple signals are available to match different temperature controllers and temperature control systems.
- The threaded structure provides stable installation and is suitable for fixed mounting on equipment, molds, heating devices, and machine parts.
- The outer metal braided shield improves anti-interference performance and helps ensure stable signal transmission.
- Suitable for continuous temperature measurement in heating equipment, plastic machinery, ovens, and industrial production lines.
- The standard U-type terminal makes wiring simple and convenient. Red is positive and blue is negative.
- Probe length, thread specification, and cable length can be customized according to customer requirements.
- Lead time
- 3–5 working days
- Warranty
- 12 months
- OEM
- Supported
- Shipping
- Worldwide export
Technical specifications
| Product Name | Probe Type Thermocouple Temperature Sensor |
|---|---|
| Sensor Type | K Type / E Type Optional |
| Probe Material | Stainless Steel |
| Cable Type | Metal Braided Shielded Cable |
| Thread Size | M8 × 1.25mm Standard, Customizable |
| Probe Diameter | 5mm Standard |
| Probe Length | 30mm / 50mm / 100mm / 150mm / 200mm Optional |
| Cable Length | 1m–5m Optional |
| Measuring Range | 0–400°C |
| Terminal Type | U-Type Terminal |
| Installation Method | Threaded Mounting |
| Application | Industrial Temperature Measurement |
| Customization | Probe Length, Cable Length, Thread Size, Sensor Type |
