SSR3 Three Phase Solid State Relay

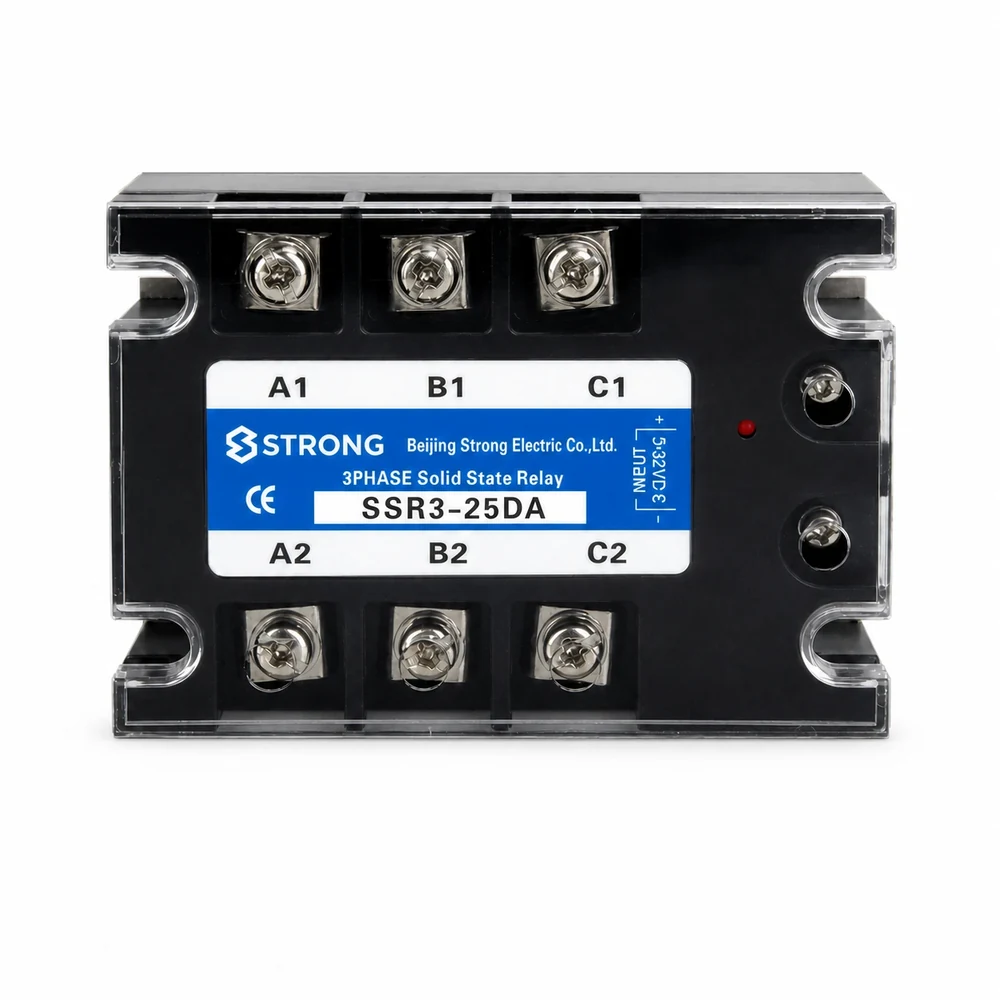

SSR3 Three Phase Solid State Relay is an industrial-grade three-phase, DC-controlled AC solid state switching module. It accepts a 3–32VDC control signal, switches 24–480VAC loads, and is available from 10A to 200A (representative model SSR3-25DA).
- Three-phase solid state relay module
- DC control, AC output (DA type)
- Available current ratings: 10A to 200A
- Output voltage: 24–480VAC
- Compact industrial structure
- LED working indicator
- No mechanical contact, silent switching
- Suitable for resistive and inductive loads
- Screw terminal connection for stable wiring
- Used in industrial 380V three-phase systems
- Lead time
- 3–5 working days
- Warranty
- 12 months
- OEM
- Supported
- Shipping
- Worldwide export
Technical specifications
| Product Type | SSR3 Three Phase Solid State Relay |
|---|---|
| Load Current | 10A, 25A, 40A, 50A, 60A, 75A, 80A, 100A, 120A, 200A |
| Load Voltage | 24–480VAC |
| Control Voltage | 3–32VDC |
| Control Current | 10–68mA |
| On-state Voltage Drop | ≤1.8V |
| Off-state Leakage Current | ≤10mA |
| On-off Time | ≤10ms |
| Dielectric Strength | 2500VAC |
| Insulation Resistance | 1000MΩ / 500VAC |
| Ambient Temperature | −30°C to +75°C |
| Mounting Method | Screw mounting |
| Work Indicator | LED |
| Weight | 340g |

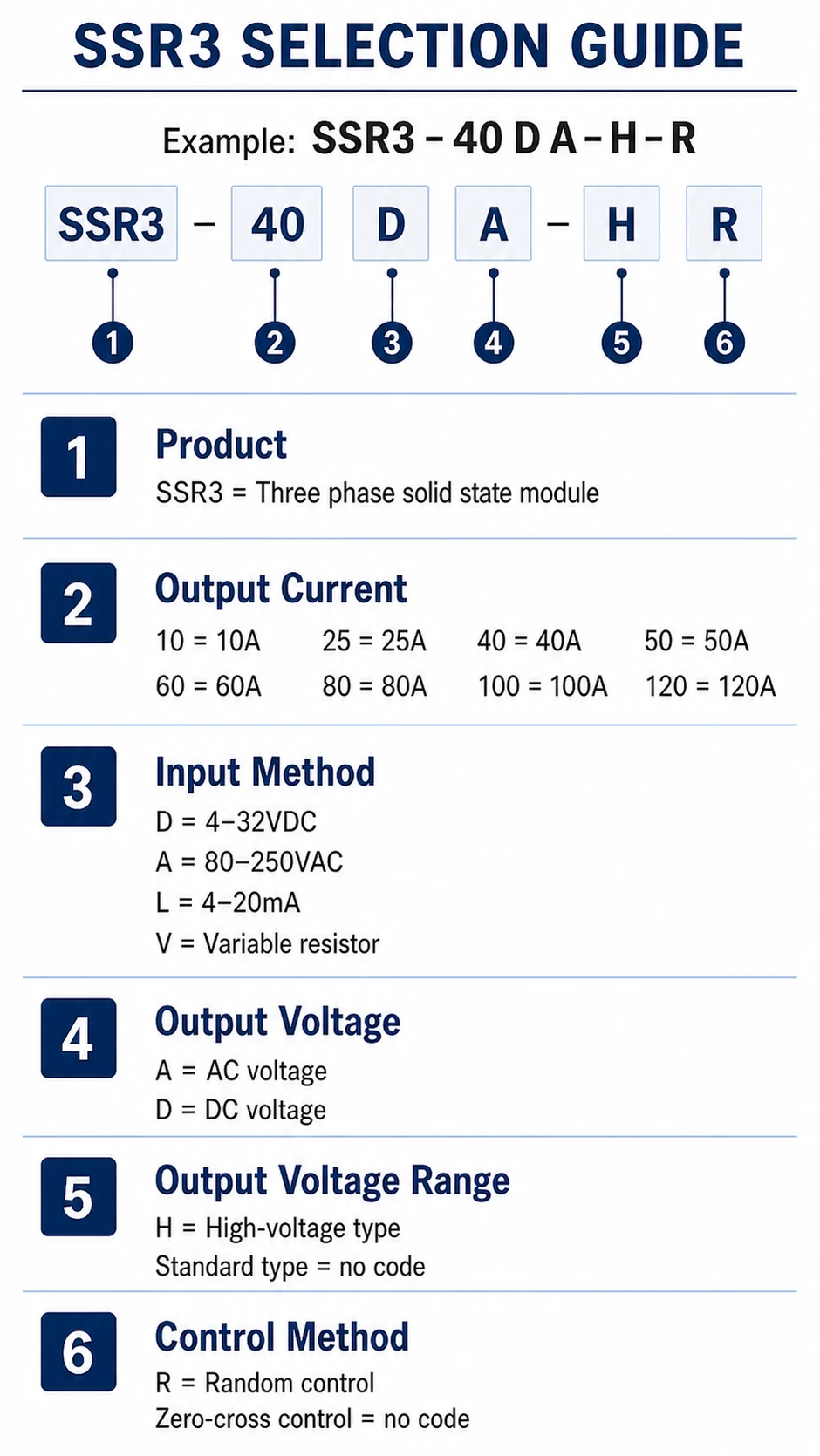

SSR3 Selection Guide

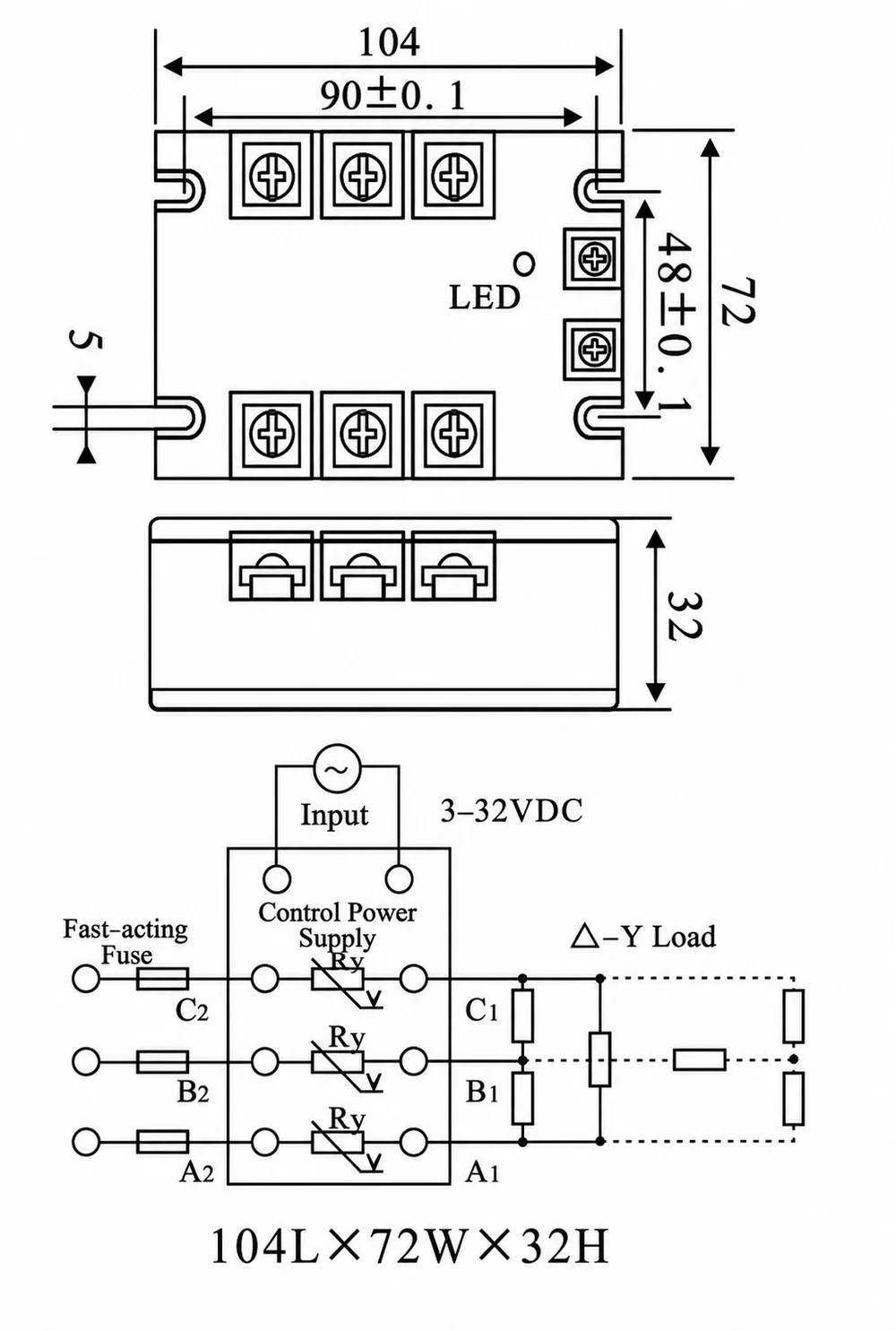

Dimensions & Wiring Diagram
Popular models
All SSR3 three-phase models share the same 3–32VDC control input and 24–480VAC load voltage; only the rated load current differs.
| Model | Load Current | Control Voltage | Load Voltage |
|---|---|---|---|
| SSR3-10DA | 10A | 3–32VDC | 24–480VAC |
| SSR3-25DA | 25A | 3–32VDC | 24–480VAC |
| SSR3-40DA | 40A | 3–32VDC | 24–480VAC |
| SSR3-50DA | 50A | 3–32VDC | 24–480VAC |
| SSR3-60DA | 60A | 3–32VDC | 24–480VAC |
| SSR3-75DA | 75A | 3–32VDC | 24–480VAC |
| SSR3-80DA | 80A | 3–32VDC | 24–480VAC |
| SSR3-100DA | 100A | 3–32VDC | 24–480VAC |
| SSR3-120DA | 120A | 3–32VDC | 24–480VAC |
| SSR3-200DA | 200A | 3–32VDC | 24–480VAC |
Related guides
How to Wire TCN4S and TCN4H/L/M Temperature Controllers: Contactor and SSR Methods
Terminal-by-terminal wiring instructions for the TCN4S-14RV and TCN4H/L/M-14RV PID temperature controllers, covering AC contactor (relay output) wiring, BSSR-25DA solid-state relay wiring, K type and PT100/Cu50 sensor connections, SSR heat sink sizing and a commissioning checklist.
Read guide FAQ · 2025-05-22What's the Difference Between Zero-Crossing and Random Turn-On Solid State Relays?
This blog explains the core differences between zero-crossing and random turn-on SSRs, including switching behavior, EMI, and application suitability.
Read guide Technical Guides · 2025-04-15How to Wire REX-C100/C400/C700 Temperature Controllers with Relay and SSR Output
This blog provides a comprehensive guide on wiring REX series temperature controllers, including the C100, C400, and C700 models. It explains both relay and solid-state relay (SSR) output methods, sensor wiring (K-type and PT100), and alarm connections. Diagrams are provided for practical understanding and installation reference.
Read guideRelated models
All Solid State Relays & SCR Power Modules
SSR-DA Single-Phase SSR — Standard Black Housing, 10A–100A
SSR-DA Series single-phase solid state relays from Beijing Strong Electric offer fast, silent zero-cross switching for AC resistive loads. Control input is 3–32VDC, load output 24–480VAC, with rated current from 10A to 100A. Typical uses are heating equipment, ovens, lighting circuits, packaging machines and temperature control systems.
View details
BDTY Single-Phase SCR Voltage Regulator
BDTY Series Single-Phase SCR Voltage Regulator is designed for precise AC power regulation of resistive heating loads. It supports multiple analog control signals, including 0–10V, 4–20mA, 1–5V and 10K potentiometer input. With opto-isolated signal and power circuits, compact structure and current options from 10A to 400A, the BDTY Series is widely used in electric heating systems, ovens, packaging machines, plastic machinery and industrial automation equipment.
View details

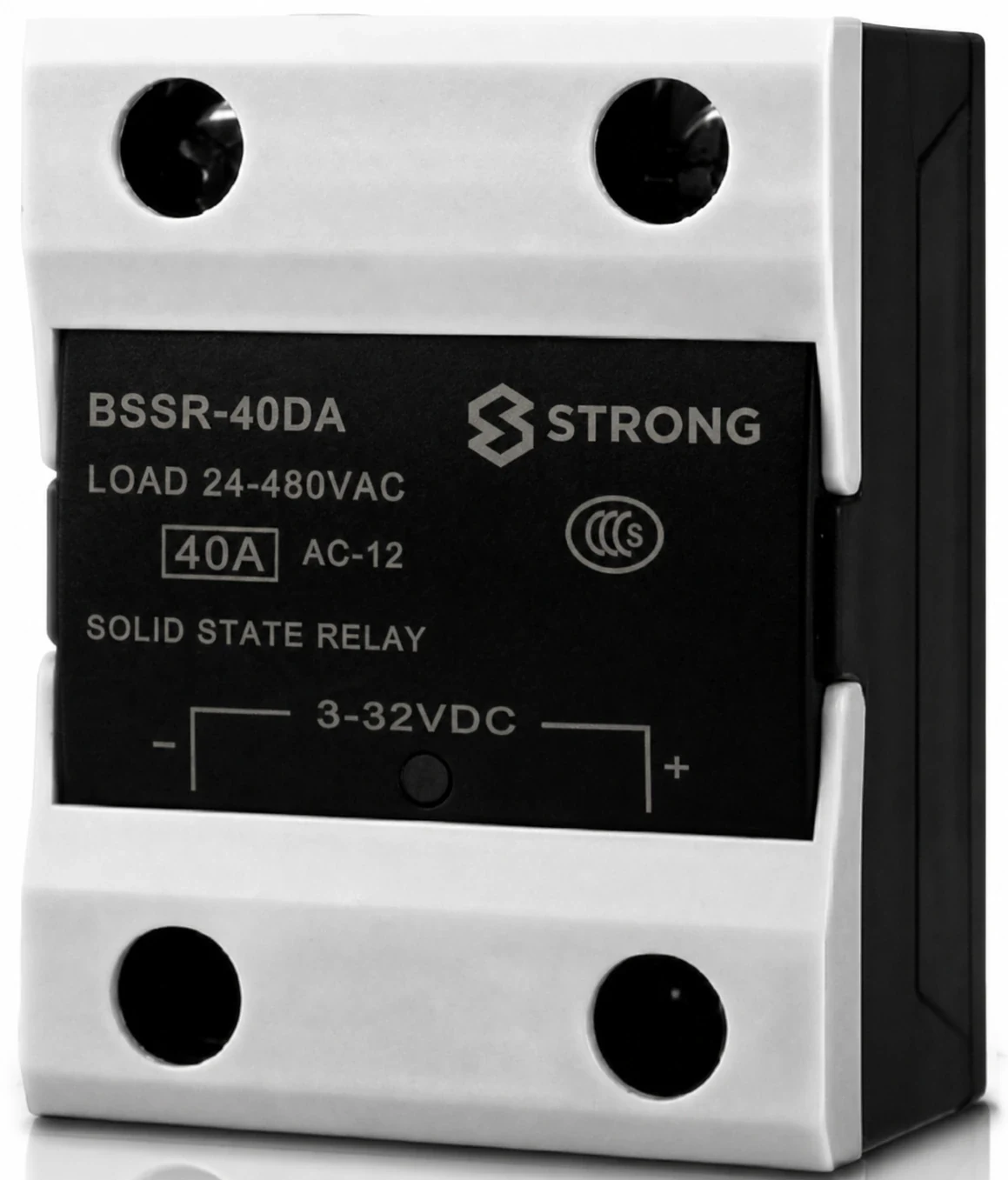

BSSR-DA Solid State Relay
BSSR-DA Series Solid State Relay is a single-phase DC-to-AC solid state relay designed for industrial heating, motor control, temperature control systems, automation equipment, and switching applications. It features DC 3-32V control input, AC 24-480V load output, fast switching, stable performance, compact design, and good heat dissipation.
View details

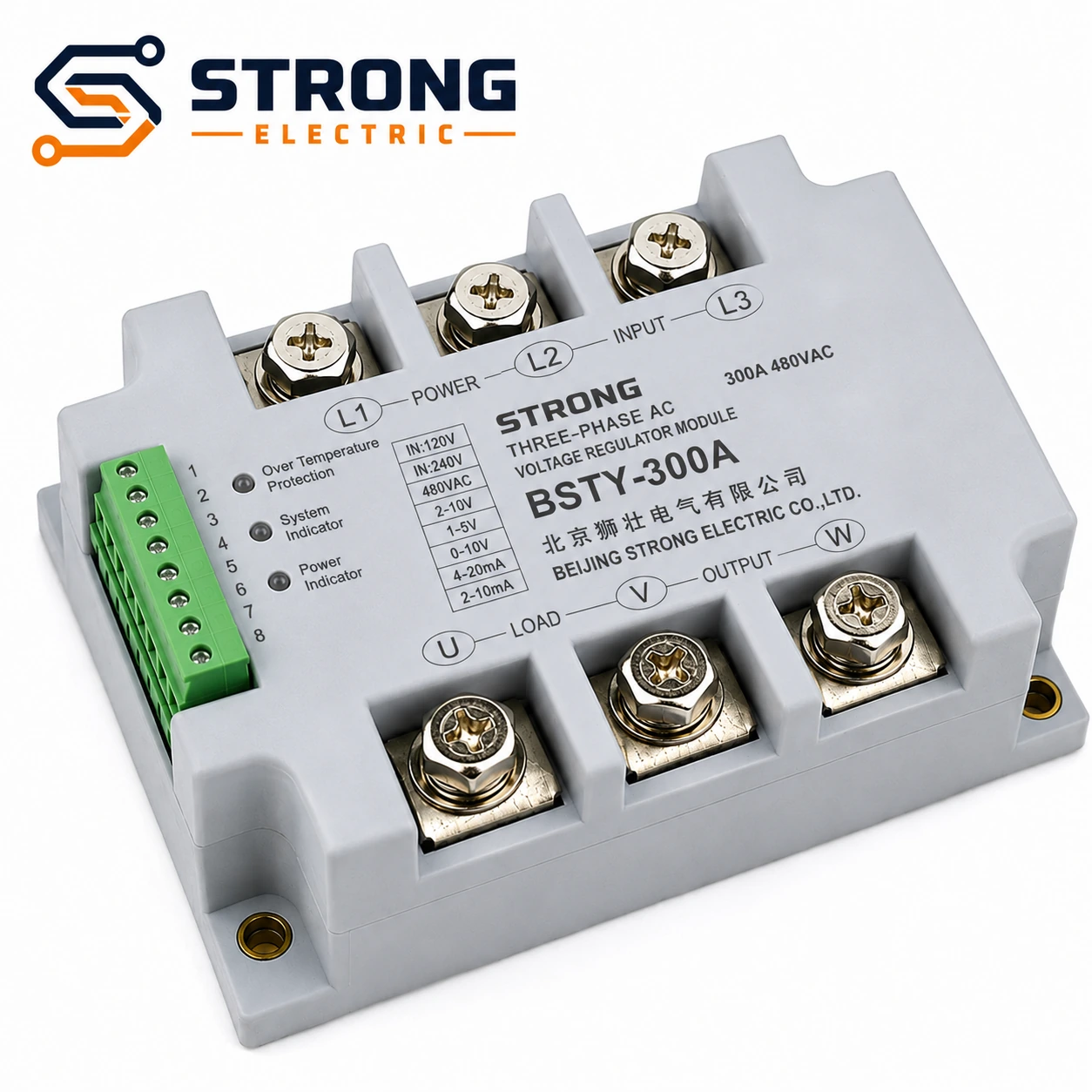

BSTY Three-Phase SCR Voltage Regulator 380V, 150A–450A
