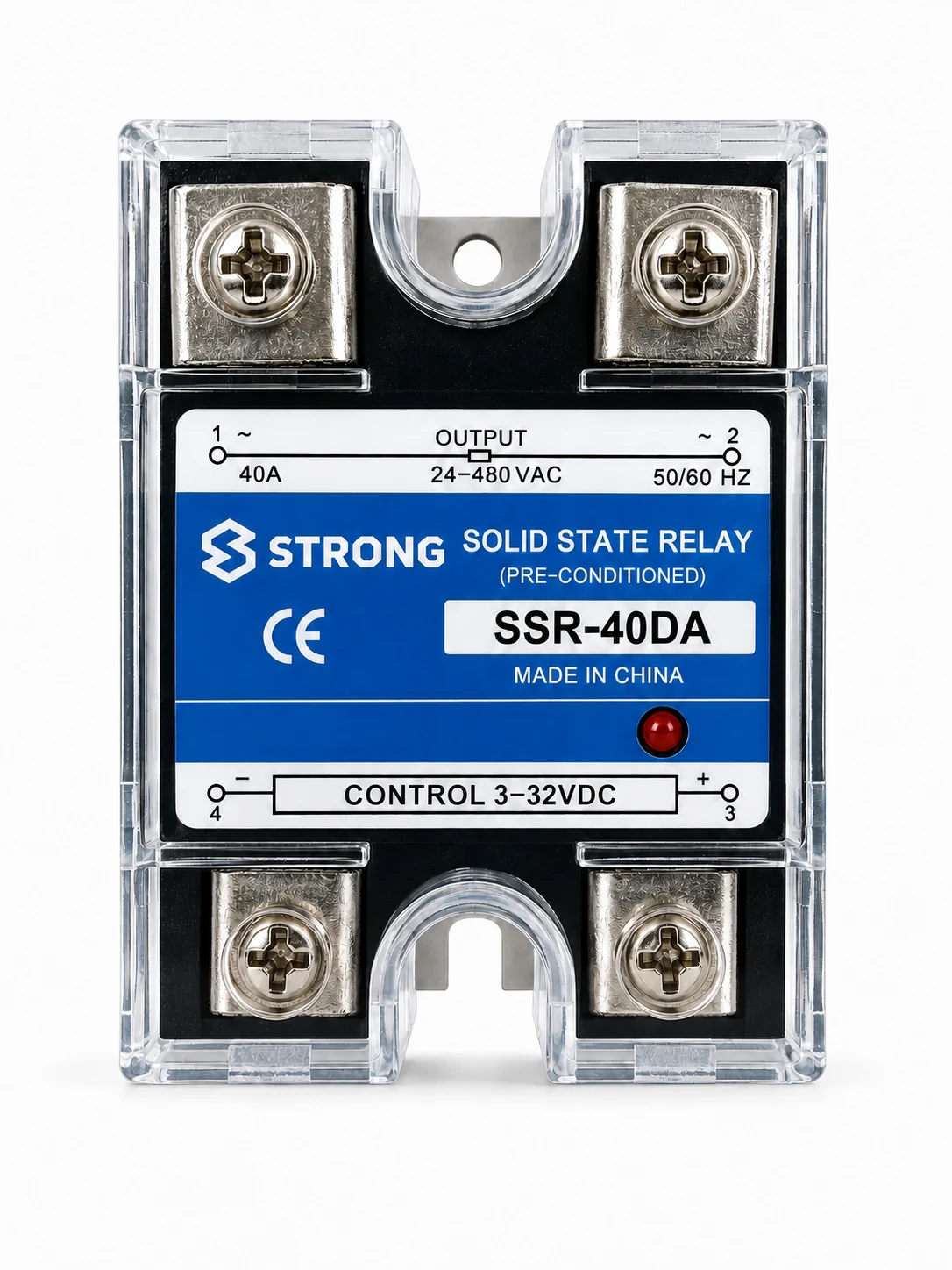

SSR-DA Series Single Phase Solid State Relay (SSR)
SSR-DA Series single-phase solid state relays from Beijing Strong Electric offer fast, silent zero-cross switching for AC resistive loads. Control input is 3–32VDC, load output 24–480VAC, with rated current from 10A to 100A. Typical uses are heating equipment, ovens, lighting circuits, packaging machines and temperature control systems.
- Silent switching – no contact bounce, ideal for sensitive environments
- Fast response and long electrical life
- Compact design for easy panel integration
- Fully opto-isolated input/output for safe signal control
- Rated current options from 10A to 100A
- Zero-cross switching for stable control of resistive loads
- Suitable for industrial automation, temperature controllers and AC load switching
- Lead time
- 3–5 working days
- Warranty
- 12 months
- OEM
- Supported
- Shipping
- Worldwide export
Technical specifications
| Load Current | 10A, 25A, 40A, 50A, 60A, 75A, 80A, 100A, 120A |
|---|---|
| Load Voltage | 24–480VAC |
| Control Voltage | 3–32VDC |
| Control Current | DC 3–25mA |
| On-state Voltage Drop | ≤1.5V |
| Off-state Leakage Current | ≤2mA |
| On-off Time | ≤10ms |
| Dielectric Strength | 2500VAC |
| Insulation Resistance | 1000MΩ / 500VDC |
| Ambient Temperature | −30°C to +75°C |
| Mounting Method | Screw mounting |
| Work Indicator | LED |
| Weight | 90g for 10A and 25A; 135g for 40A and above |

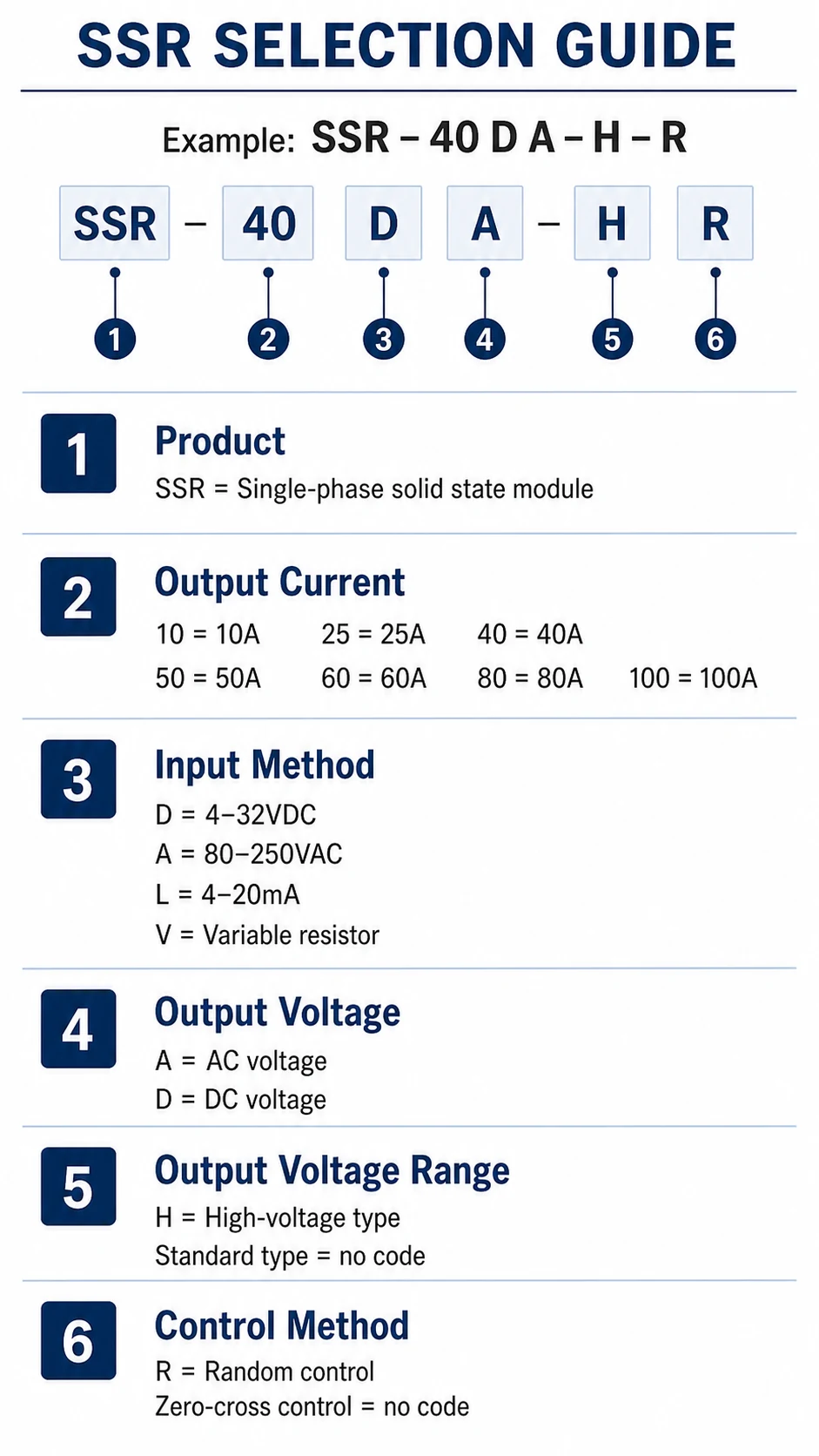

SSR Selection Guide

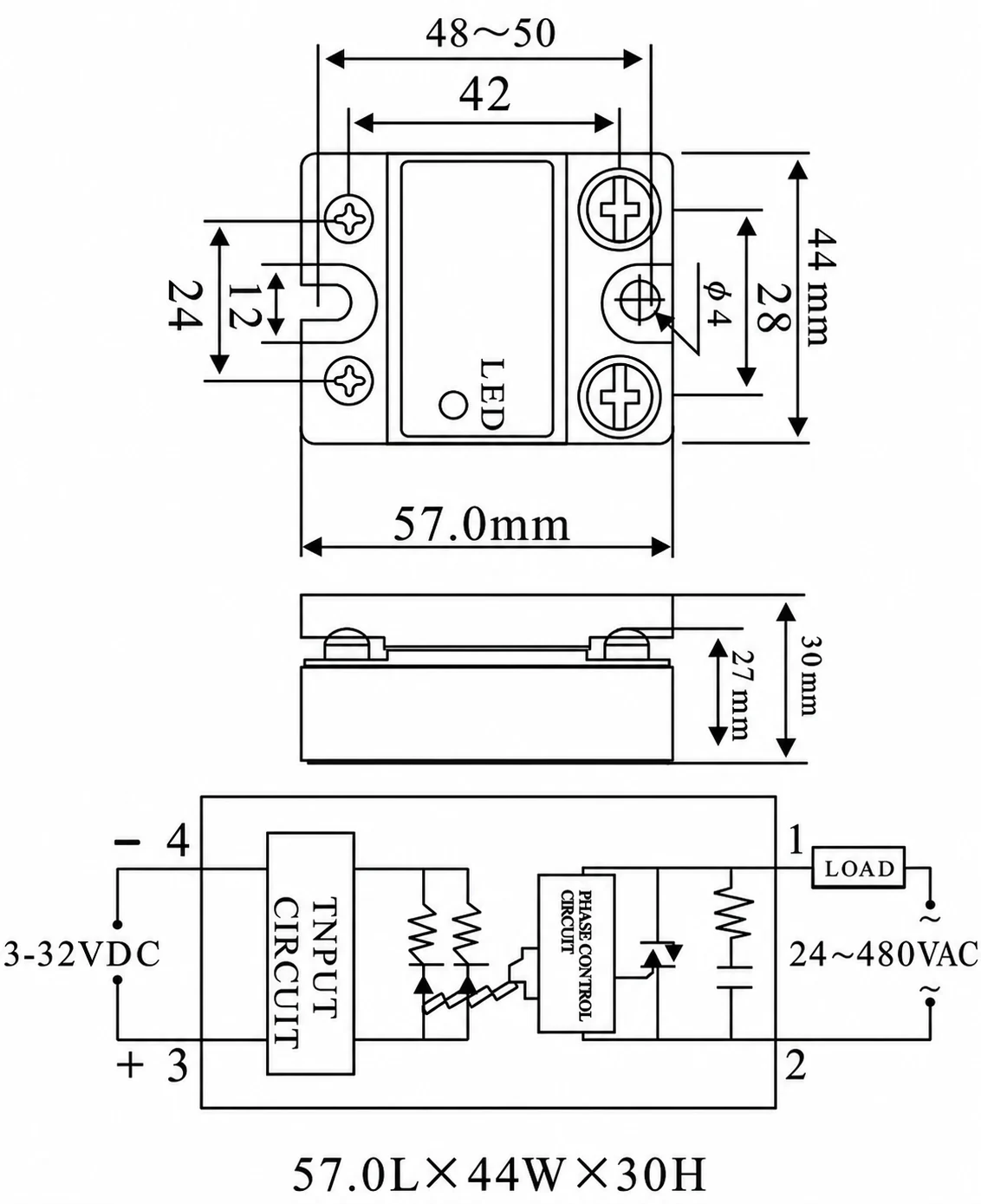

Dimensions & Wiring Diagram
