M1DK-80DA SCR Module, 80A

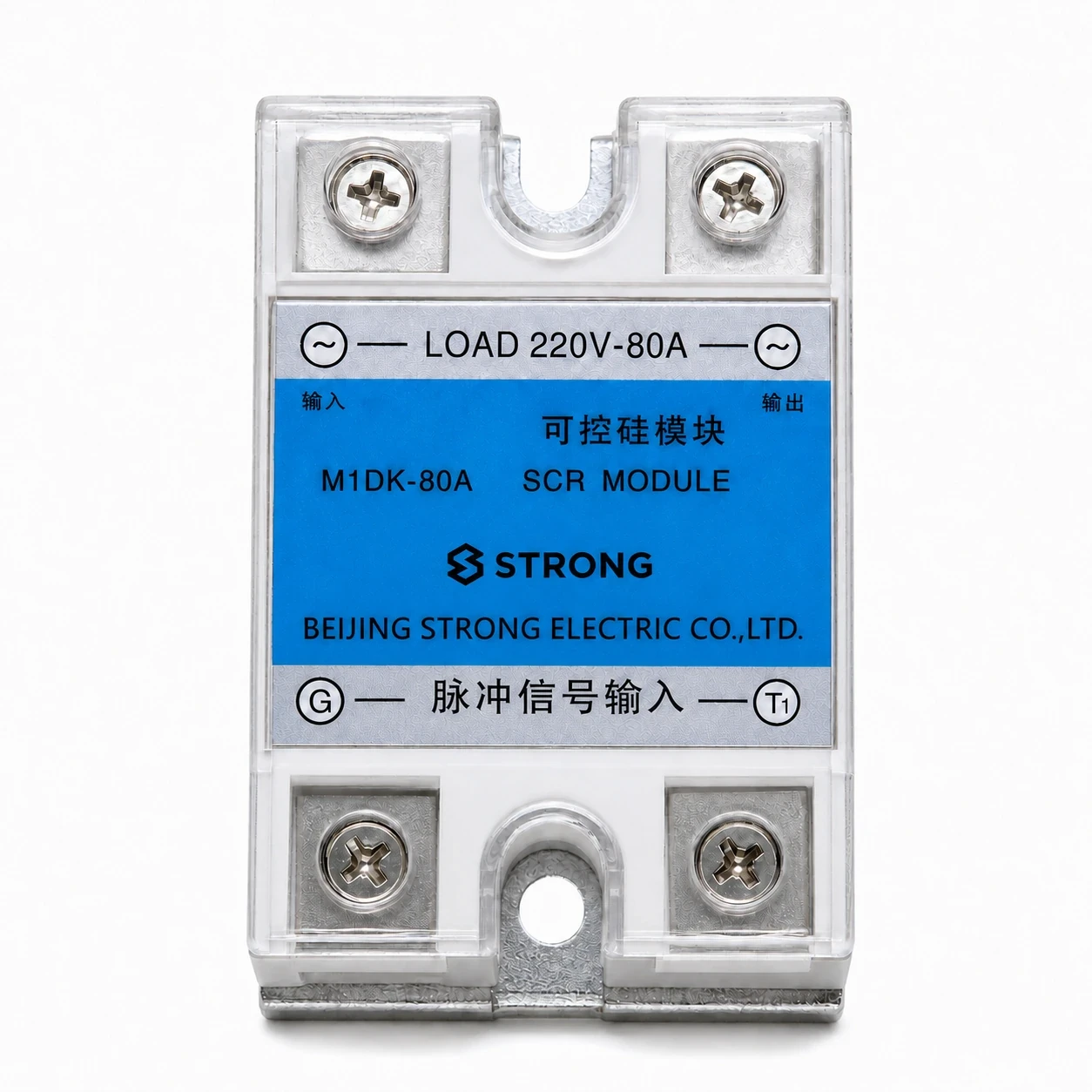

M1DK-80DA Pulse-Triggered SCR Power Module is a single-phase solid state power module driven by the pulse trigger signal of an SCR heating controller. It uses G and T1 trigger terminals, supports a 220VAC single-phase resistive load up to 80A and is used on ovens, packaging machines, blow molding machines, plastic machinery and industrial heating control systems.
- Pulse triggered SCR module for SCR controller signal input
- Compatible with ZKG, ZKC and ZKD SCR controllers
- G and T1 terminals for pulse trigger control
- Single-phase AC load voltage regulation
- Reliable solid state switching structure
- Suitable for industrial resistive heating applications
- SCR thyristor power control module
- 220VAC single-phase load voltage
- G1/T1 pulse signal input
- 80A rated current
- Suitable for resistive heating loads
- Transparent protective housing
- Simple wiring and compact installation
- Stable power regulation for industrial heating systems
- High Dielectric strength over 4KV
- High Isolation strength over 100MΩ/500VDC
- With over heat protection Circuit (120°C)
- High surge current sustenance
- High surge voltage sustenance
- Conformity with EN60947-4-3 and EN60950
- Lead time
- 3–5 working days
- Warranty
- 12 months
- OEM
- Supported
- Shipping
- Worldwide export
Technical specifications
| Product Series | M1DK Series |
|---|---|
| Model | M1DK-80DA |
| Product Type | Pulse Triggered SCR Module |
| Available Models | M1DK-80DA |
| Equivalent Model | SSR-80DV |
| Load Voltage | 220 VAC |
| Rated Current | 80A |
| Control Method | Pulse Signal Trigger |
| Trigger Terminals | G / T1 |
| Compatible Controllers | ZKG, ZKC, ZKD SCR Controllers |
| Installation Method | Bolt Installation |
| Application Load | Single-phase resistive load |
| Typical Applications | Heating control, ovens, packaging machines, molding machines |
| Product Name | SCR Thyristor Module |
| Models | M1DK-80DA |
| Current Options | 80A |
| Input Terminal | G1 / T1 |
| Input Signal | Pulse Signal Input |
| Load Type | Single-Phase Resistive Load |
| Control Type | SCR Power Regulation |
| Housing | Transparent Protective Housing |
| Application | Heating Equipment, Ovens, Heating Plates, Industrial Heating Control |
Related guides
M1DK-80A Pulse-Triggered SCR Power Module: Trigger Wiring, Sizing and Commissioning
How the M1DK / SSR-DV pulse-triggered SCR module differs from a standard DC-input SSR, how the G and T1 trigger terminals are wired to a ZKG, ZKC or ZKD controller, and how to size, cool and fault-find the module.
Read guide Technical Guides · 2025-04-12Understanding SCR Voltage Regulator Circuit Diagrams: SCR-100 Controller and M1DK Power Module
How to wire a heating controller to a pulse-triggered SCR power module in single-phase and three-phase systems, using the current SCR-100 and M1DK models (legacy ZKG-2000 / SSR-DV).
Read guide Product Updates · 2024-02-06SCR-100 / ZKG-2000 Heating Power Controller: Wiring, Setup and Fault Finding
What the SCR-100 / ZKG-2000 actually controls, how the T1, G, N and L terminals connect to an external pulse-triggered SCR module, panel and cutout data, and how to commission and fault-find the pair.
Read guideRelated models
All Solid State Relays & SCR Power Modules
M1DK / SSR-DV Pulse-Triggered SCR Power Module

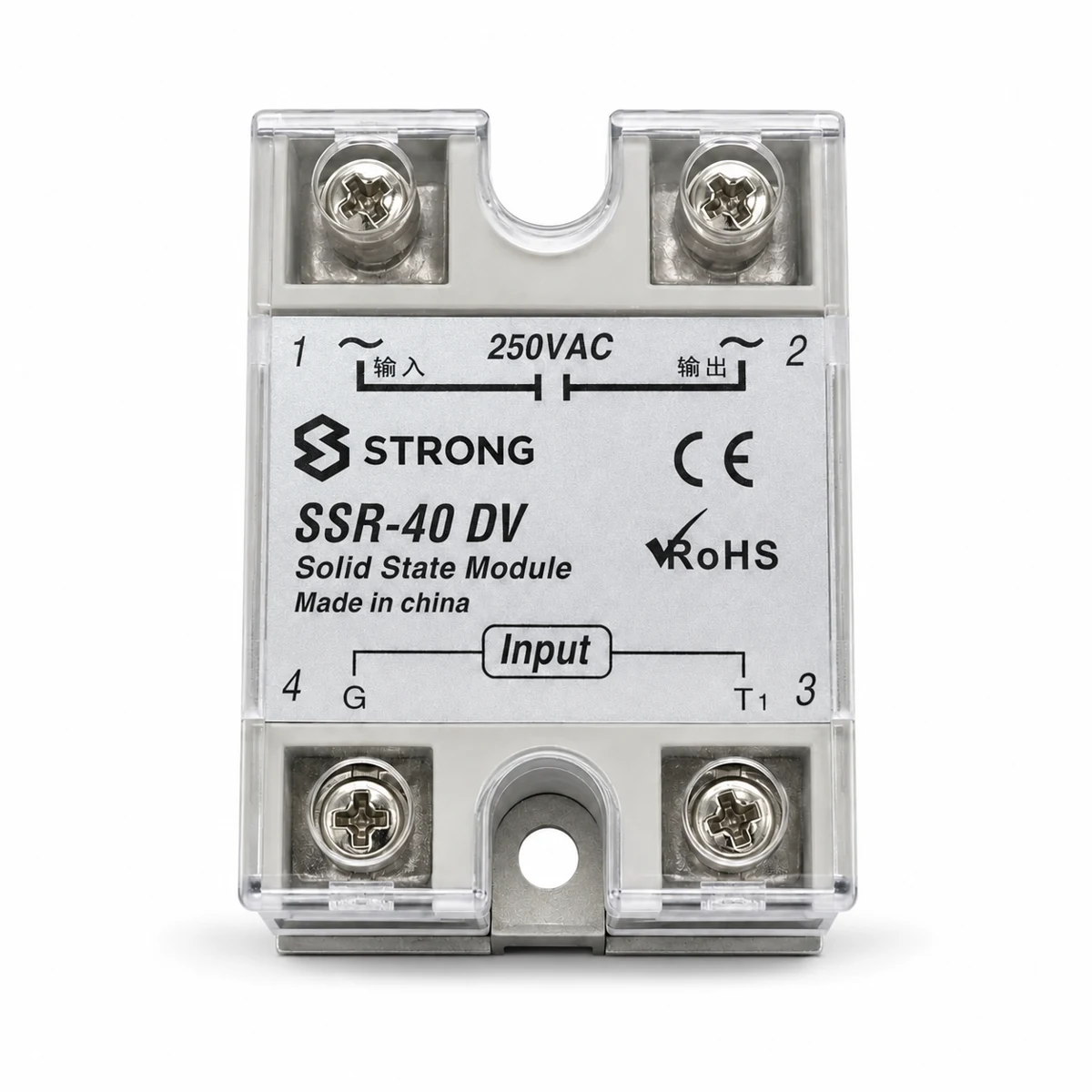

M1DK / SSR-DV Pulse-Triggered SCR Power Module is a single-phase solid state power module driven by the pulse trigger signal of an SCR heating controller. It uses G and T1 trigger terminals, supports 250VAC single-phase resistive loads and is available from 25A to 100A for ovens, packaging machines, blow molding machines, plastic machinery and industrial heating control systems. Also known in some markets as BSSR-DV.
