M1DK / SSR-DV Pulse-Triggered SCR Power Module

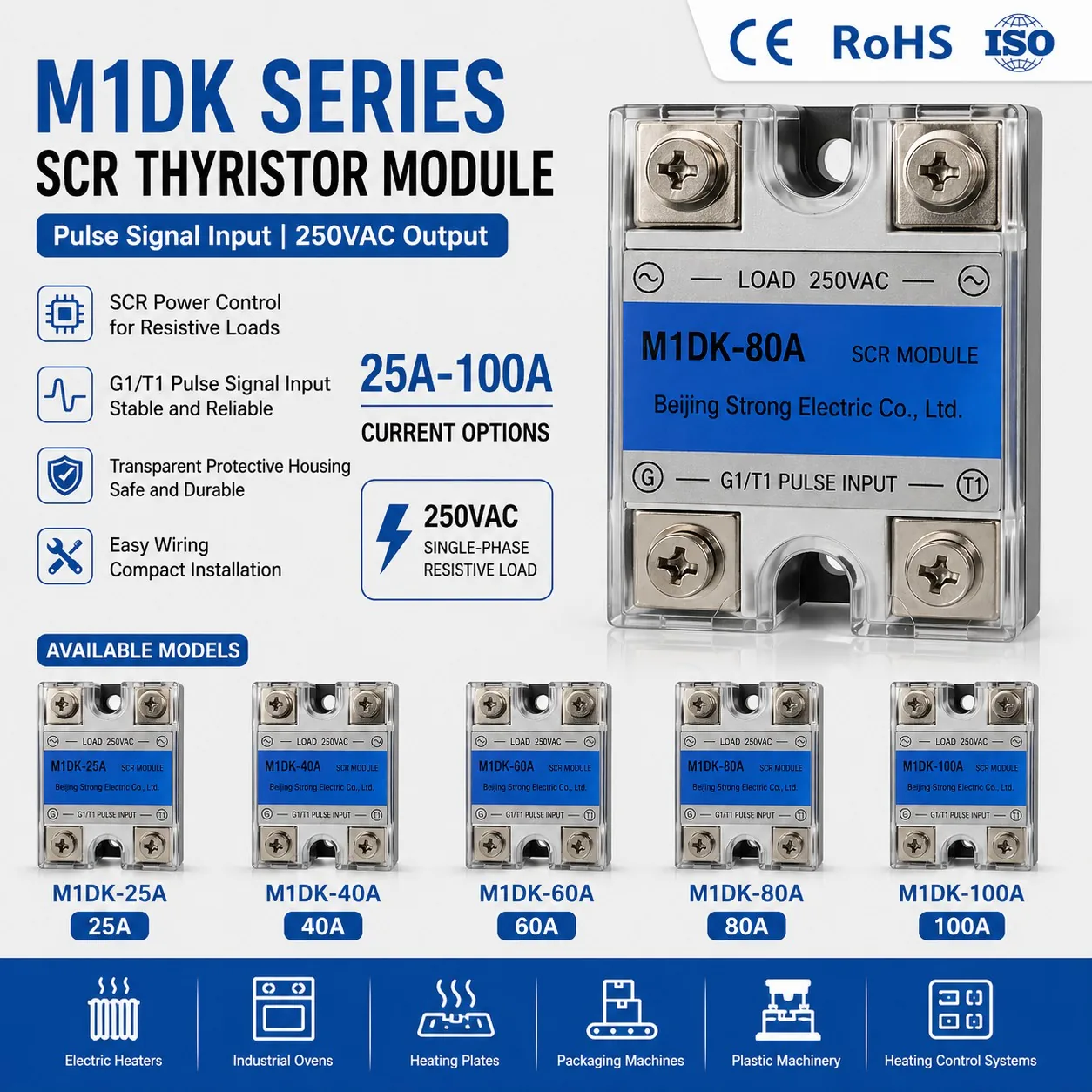

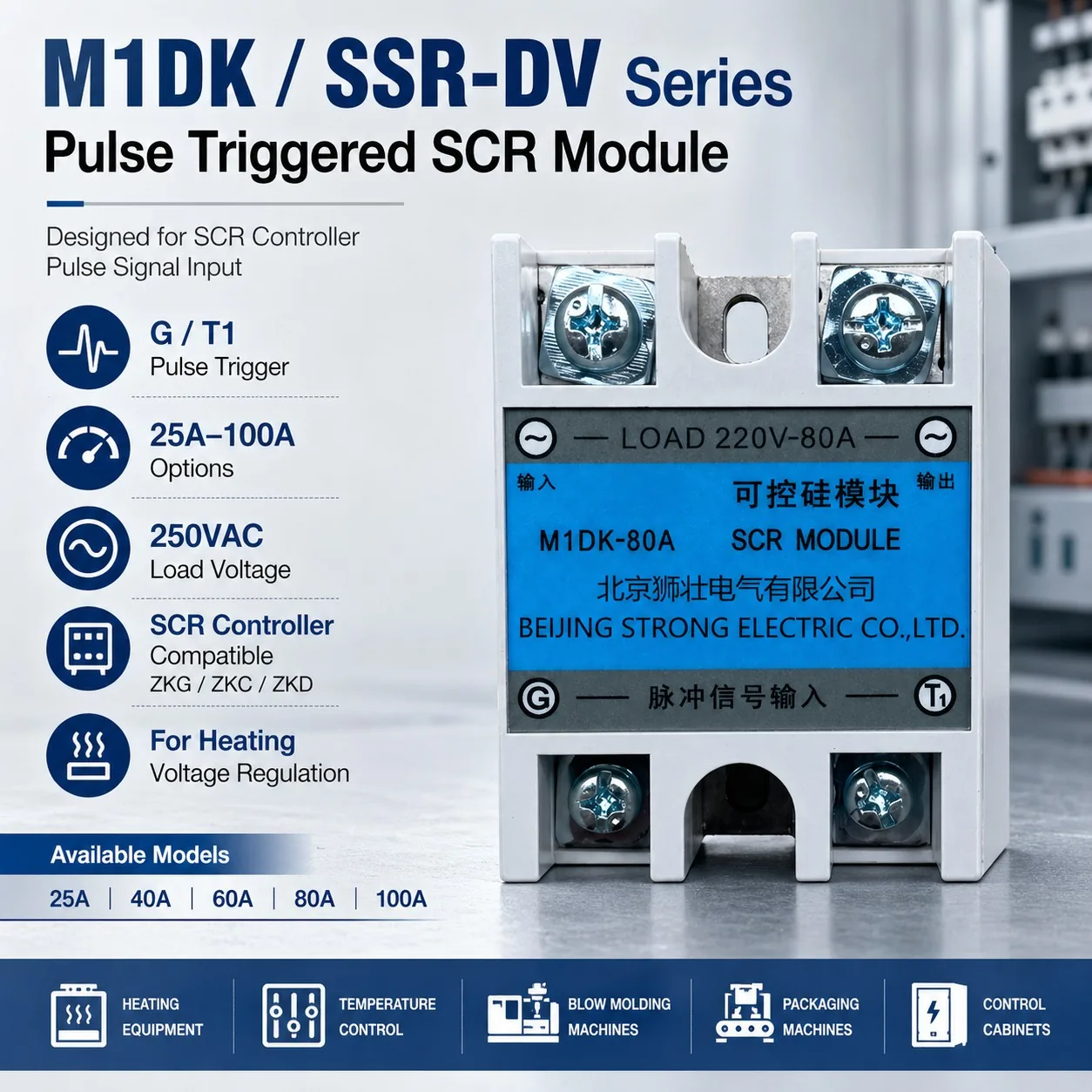

M1DK / SSR-DV Pulse-Triggered SCR Power Module is a single-phase solid state power module driven by the pulse trigger signal of an SCR heating controller. It uses G and T1 trigger terminals, supports 250VAC single-phase resistive loads and is available from 25A to 100A for ovens, packaging machines, blow molding machines, plastic machinery and industrial heating control systems. Also known in some markets as BSSR-DV.
- Pulse triggered SCR module for SCR controller signal input
- Compatible with ZKG, ZKC and ZKD SCR controllers
- G and T1 terminals for pulse trigger control
- Single-phase AC load voltage regulation
- Reliable solid state switching structure
- Available in 25A, 40A, 60A, 80A and 100A
- Suitable for industrial resistive heating applications
- SCR thyristor power control module
- 250VAC single-phase load voltage
- G1/T1 pulse signal input
- 25A to 100A current options
- Suitable for resistive heating loads
- Transparent protective housing
- Simple wiring and compact installation
- Stable power regulation for industrial heating systems
- High Dielectric strength over 4KV
- High Isolation strength over 100MΩ/500VDC
- With over heat protection Circuit (120°C)
- High surge current sustenance
- High surge voltage sustenance
- Conformity with EN60947-4-3 and EN60950
- Stock / sample dispatch
- 3–5 working days
- Warranty
- 12 months
- OEM
- Supported
- Shipping
- Worldwide export
Technical specifications
| Product Series | SSR-DV / M1DK Series |
|---|---|
| Also Known As | BSSR-DV Series |
| Product Type | Pulse Triggered SCR Module |
| Available Models | SSR-25DV, SSR-40DV, SSR-60DV, SSR-80DV, SSR-100DV |
| Equivalent Model | M1DK Series |
| Load Voltage | 24–250VAC / 250VAC |
| Rated Current | 25A / 40A / 60A / 80A / 100A |
| Control Method | Pulse Signal Trigger |
| Trigger Terminals | G / T1 |
| Compatible Controllers | ZKG, ZKC, ZKD SCR Controllers |
| Installation Method | Bolt Installation |
| Application Load | Single-phase resistive load |
| Typical Applications | Heating control, ovens, packaging machines, molding machines |
| Product Name | SCR Thyristor Module |
| Models | BSSR-25DV / BSSR-40DV / BSSR-60DV / BSSR-80DV / BSSR-100DV |
| Current Options | 25A / 40A / 60A / 80A / 100A |
| Input Terminal | G1 / T1 |
| Input Signal | Pulse Signal Input |
| Load Type | Single-Phase Resistive Load |
| Control Type | SCR Power Regulation |
| Housing | Transparent Protective Housing |
| Application | Heating Equipment, Ovens, Heating Plates, Industrial Heating Control |
Related guides
M1DK-80A Pulse-Triggered SCR Power Module: Trigger Wiring, Sizing and Commissioning
How the M1DK / SSR-DV pulse-triggered SCR module differs from a standard DC-input SSR, how the G and T1 trigger terminals are wired to a ZKG, ZKC or ZKD controller, and how to size, cool and fault-find the module.
Read guide Technical Guides · 2025-04-12SCR Voltage Regulator Circuit Diagram and Wiring Guide
How to read and apply SCR voltage regulator circuit diagrams for single-phase and three-phase four-wire resistive heating, using the current SCR-100 controller and M1DK pulse-triggered power module, including terminal identification, control wiring, fusing and commissioning.
Read guide Product Updates · 2024-02-06SCR-100 / ZKG-2000 Heating Power Controller: Wiring, Setup and Fault Finding
What the SCR-100 / ZKG-2000 actually controls, how the T1, G, N and L terminals connect to an external pulse-triggered SCR module, panel and cutout data, and how to commission and fault-find the pair.
Read guideCompatible Heating Controller
SCR-100 / ZKG-2000 Blow Molding Machine Heating Controller
The SCR-100 / ZKG-2000 is a panel-mount heating controller for blow molding and thermoforming machines — not a standard PID temperature controller. It does not measure temperature: the operator sets the heating power directly, the controller regulates that power and outputs the thyristor trigger signal, and an external M1DK or SSR-DV SCR power module carries the actual 220VAC load current. A microprocessor-based phase-angle control circuit with deep voltage negative feedback reduces the influence of supply-voltage fluctuations and provides stable, linear 0–220VAC adjustment. The dual LED display gives clear remote visibility of the measured and set voltages. Touch-button operation, compact 48 × 48 mm panel construction and strong interference resistance make it suitable for blow molding, vacuum forming, mold heating, packaging machinery and other resistance-heating equipment.
View detailsHow the pair works together
SCR-100 / ZKG-2000 Controller → Trigger Signal → M1DK / SSR-DV Power Module → Blow Molding Machine Heater
The controller sets and displays the heating power and outputs the trigger signal; the external power module carries the heating load. Confirm terminal marking and wiring for your exact units before installation.
