Thermocouples & RTD Sensors

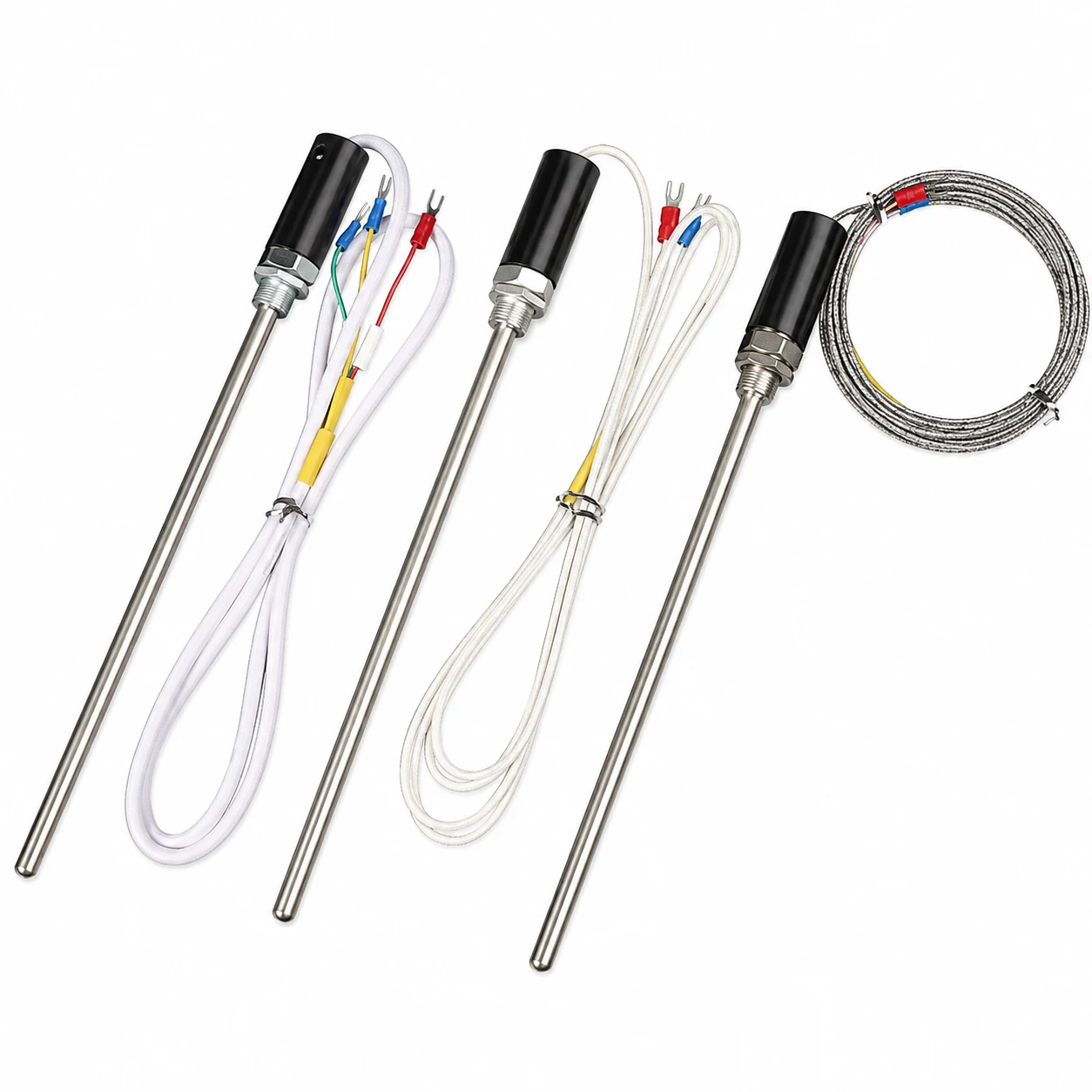

Probe-Type Stainless Steel Thermocouple Temperature Sensor (K, E Thermocouple or PT100 / CU50 RTD)
Probe-type stainless steel thermocouple temperature sensor with K type or E type thermocouple elements and PT100 or CU50 RTD options. It supports M12 threaded installation, custom probe length and custom cable length, and is suitable for injection molding machines, heating equipment, boilers, plastic machinery and industrial temperature controllers.
- The probe-type stainless steel body is durable, heat resistant, corrosion resistant, and suitable for long-term use in industrial environments.
- The threaded mounting design allows stable installation and helps prevent loosening during equipment operation.
- Multiple sensing elements are available — K and E type thermocouples, or PT100 and CU50 RTDs — to match different PID temperature controllers and industrial control instruments.
- Common probe lengths include 50mm, 100mm, 150mm, 200mm, 250mm, and 300mm. Other lengths can also be customized.
- Standard cable lengths include 1m, 2m, 3m, and 5m. Other cable lengths can be supplied upon request.
- Optional shielded cable helps improve signal stability and reduce interference in industrial environments.
- Suitable for high-temperature, vibration, and continuous-operation environments, especially injection molding machines, heating equipment, and temperature control systems.
- Lead time
- 3–5 working days
- Warranty
- 12 months
- OEM
- Supported
- Shipping
- Worldwide export
Technical specifications
| Product Name | Probe-Type Thermocouple Temperature Sensor |
|---|---|
| Sensor Type | K Type / E Type Thermocouple, or PT100 / CU50 RTD |
| Probe Material | Stainless Steel |
| Thread Size | M12 Standard, Customizable |
| Probe Length | 50mm / 100mm / 150mm / 200mm / 250mm / 300mm Optional |
| Standard Probe Length | 200mm |
| Cable Length | 1m / 2m / 3m / 5m Optional |
| Terminal Type | U-Type Terminal |
| Installation Method | Threaded Screw Mounting |
| Application | Industrial Temperature Measurement |
| Customization | Probe Length, Cable Length, Thread Size, Sensor Type |
| Sensing Element | Temperature Range |
| E Type | 0–400°C |
| K Type | 0–600°C |
| PT100 (RTD) | -200–600°C |
| CU50 (RTD) | -50–150°C |

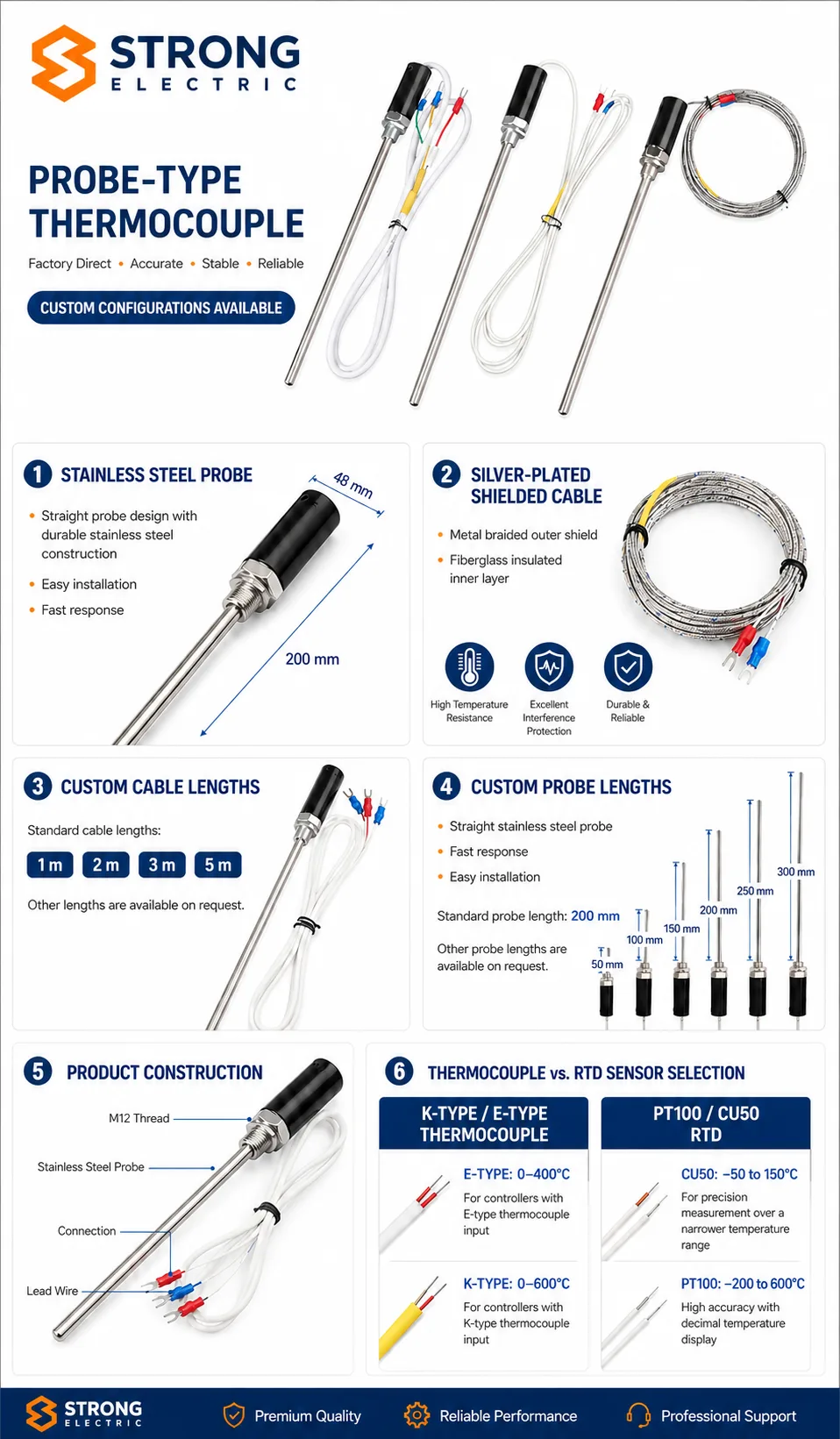

Product Details & Custom Options
Explore the probe construction, cable options, standard lengths and available thermocouple or RTD sensor configurations.
Related guides
How to Choose a Threaded Temperature Sensor: K, E Thermocouple or Pt100 RTD
A selection and installation guide for M6 / M8 threaded temperature sensor probes: how thermocouples and RTDs differ, which element to specify, how thread size and mounting affect the reading, lead length and shielding, terminal polarity and the controller settings to check at commissioning.
Read guide Technical Guides · 2026-08-23How to Wire REX-C100, REX-C700 and REX-C400/C900 Temperature Controllers
English wiring diagrams for REX-series temperature controllers, including relay, AC contactor, SSR, K-type thermocouple and 3-wire PT100 connections.
Read guide Technical Guides · 2026-08-23How to Wire TCN4S and TCN4H/L/M Temperature Controllers: Contactor and SSR Methods
Terminal-by-terminal wiring instructions for the TCN4S-14RV and TCN4H/L/M-14RV PID temperature controllers, covering AC contactor (relay output) wiring, BSSR-25DA solid-state relay wiring, K type and PT100/Cu50 sensor connections, SSR heat sink sizing and a commissioning checklist.
Read guideRelated models
All Thermocouples & RTD Sensors
Custom K/E Type High-Temperature Patch Thermocouple Temperature Sensor
Custom K/E type high-temperature patch thermocouple temperature sensor with brass patch terminal, 4mm/5mm/6mm optional inner hole, shielded cable, high-temperature wire, and customizable cable length. Suitable for injection molding machines, hot runner systems, molds, heating plates, and industrial surface temperature measurement.
View details
Probe Type K/E Thermocouple Threaded Temperature Sensor with Metal Shielded Cable
Probe type K/E thermocouple temperature sensor with stainless steel probe, M8 threaded installation, metal braided shielded cable, U-type terminal, and customizable cable length. Suitable for temperature controllers, heating equipment, plastic machinery, chemical equipment, industrial equipment, and automation systems.
View details

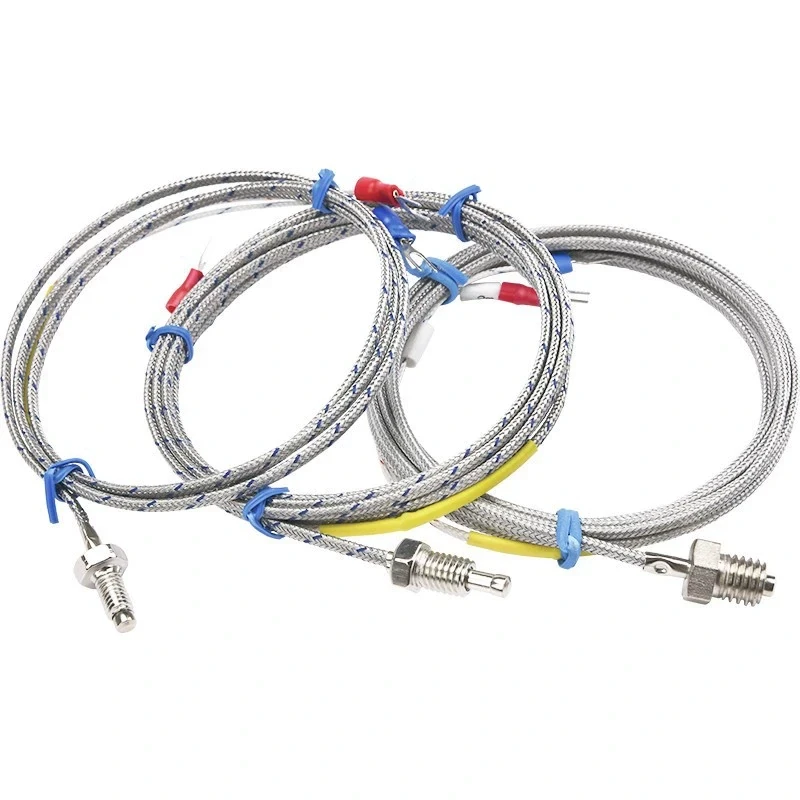

M6 / M8 Threaded Temperature Sensor Probe (K, E Thermocouple or Pt100 RTD)
