Thermocouples & RTD Sensors

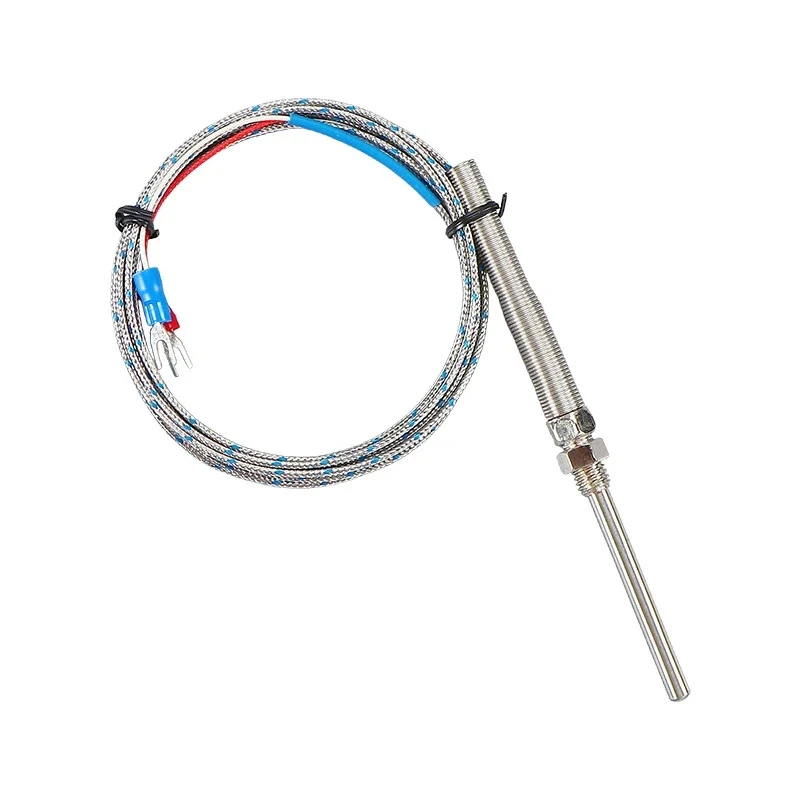

K/E Type Probe Thermocouple Temperature Sensor
K/E type probe thermocouple temperature sensor with Ø5mm stainless steel probe, spring compression housing and high-temperature braided shielded cable. Probe lengths of 50mm, 100mm, 150mm and 200mm are available, with 1m/2m/3m/5m cable options and custom lengths on request. Suitable for ovens, injection molding machines, extruders, molds and general industrial temperature measurement.
- Precision stainless-steel probe for durable, reliable industrial temperature sensing.
- Spring compression housing helps maintain secure probe contact and adjustable mounting depth.
- High-temperature braided shielded cable supports stable signal transmission in noisy environments.
- Probe length options of 50mm, 100mm, 150mm and 200mm (overall 129/179/229/279mm).
- U-type 4mm fork terminals with red positive and blue negative marking; plug terminals customizable.
- K type and E type calibrations as standard; S, R, B, N, J, T, WRe and WFT available on request.
- Standard cable lengths of 1m, 2m, 3m and 5m; other lengths can be customized.
- Lead time
- 3–5 working days
- Warranty
- 12 months
- OEM
- Supported
- Shipping
- Worldwide export
Technical specifications
| Product Type | Probe-type thermocouple temperature sensor |
|---|---|
| Thermocouple Type | K Type / E Type |
| Temperature Range | 0–400°C |
| Probe Diameter | Ø5mm |
| Probe Length Options | 50mm, 100mm, 150mm, 200mm |
| Overall Length | 129mm, 179mm, 229mm, 279mm |
| Spring Housing Length | 59mm |
| Thread Section Length | 8mm |
| Hex Section Length | 11mm |
| Cable Length Options | 1m, 2m, 3m, 5m; custom lengths available |
| Terminal | U-type fork terminal; plug terminal customizable |
| Thread Material | Metal |
| Terminal Material | Metal |
| Available Calibration Types | S, R, B, N, K, E, J, T, WRe, WFT |

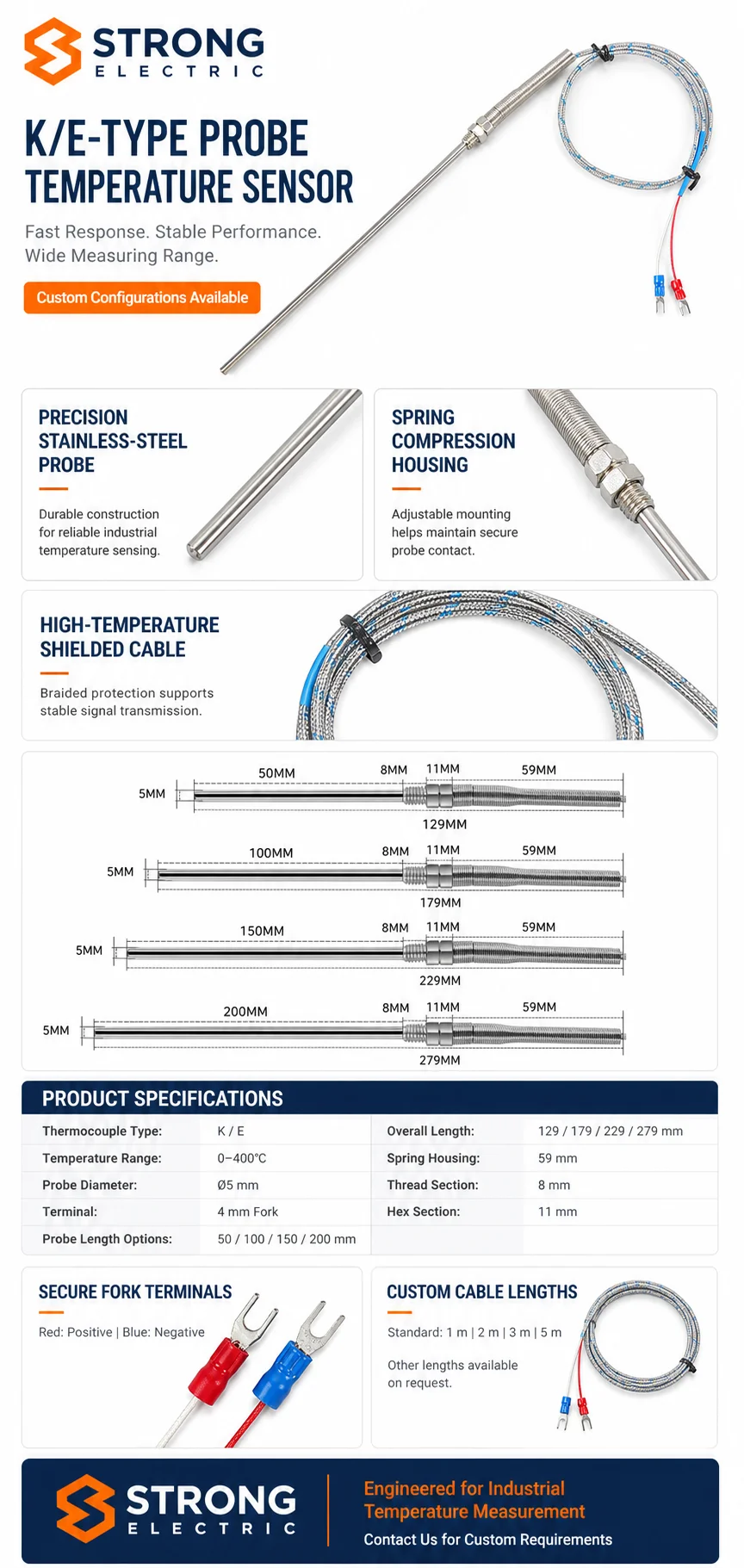

Product Details & Custom Options
Probe construction, spring compression housing, dimension options, specifications, terminal types and custom cable lengths for this K/E type probe thermocouple series.
Related guides
How to Choose a Threaded Temperature Sensor: K, E Thermocouple or Pt100 RTD
A selection and installation guide for M6 / M8 threaded temperature sensor probes: how thermocouples and RTDs differ, which element to specify, how thread size and mounting affect the reading, lead length and shielding, terminal polarity and the controller settings to check at commissioning.
Read guide Technical Guides · 2026-08-25TEL96-9001 Temperature Controller Wiring Guide: Direct Heater and AC Contactor Methods
Terminal-by-terminal wiring for the TEL96-9001 ON/OFF temperature controller: K-type thermocouple connection, direct heater switching up to 1500 W, AC contactor control, 220 VAC to 380 VAC supply change, commissioning checklist and troubleshooting.
Read guide Technical Guides · 2026-08-23How to Wire REX-C100, REX-C700 and REX-C400/C900 Temperature Controllers
English wiring diagrams for REX-series temperature controllers, including relay, AC contactor, SSR, K-type thermocouple and 3-wire PT100 connections.
Read guideRelated models
All Thermocouples & RTD Sensors
Probe-Type Stainless Steel Thermocouple Temperature Sensor (K, E Thermocouple or PT100 / CU50 RTD)
Probe-type stainless steel thermocouple temperature sensor with K type or E type thermocouple elements and PT100 or CU50 RTD options. It supports M12 threaded installation, custom probe length and custom cable length, and is suitable for injection molding machines, heating equipment, boilers, plastic machinery and industrial temperature controllers.
View details
M6 / M8 Threaded Temperature Sensor Probe (K, E Thermocouple or Pt100 RTD)
Threaded bolt-on temperature sensor for heater bands, moulds, platens and machine bodies. Choose a K or E type thermocouple element or a 3-wire Pt100 RTD element, an M6 x 1.0 or M8 x 1.25 metric thread, and a braided high-temperature lead cut to your installation length.
View details

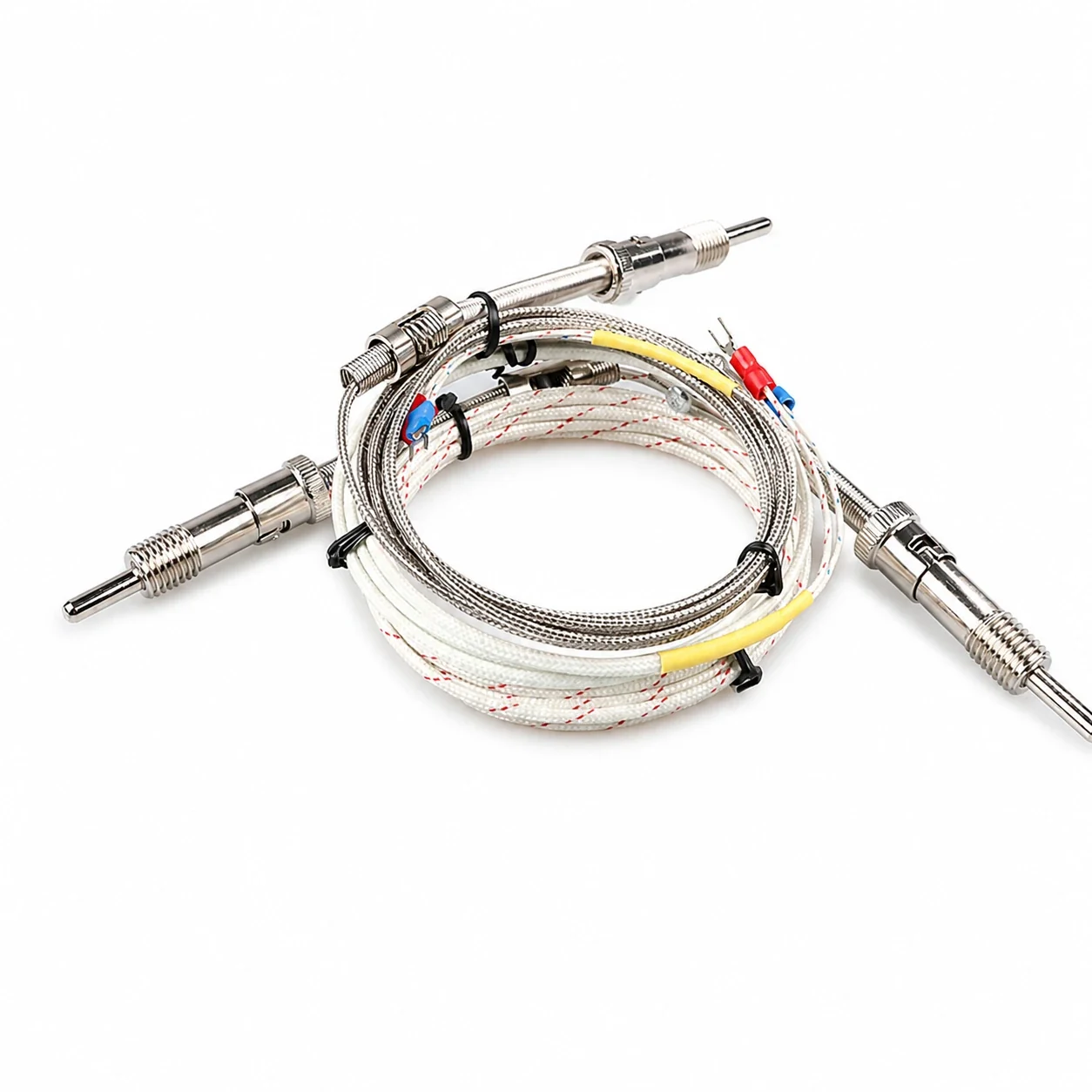

Spring Loaded M12 Thermocouple Temperature Sensor
